Warranty DC creation
Warranty DC Creation Process in Gain DMS
Overview
This document explains the step-by-step process of creating a DC (Dispatch Challan) for warranty batches in Gain DMS.
In the automobile dealership industry, once warranty claims are grouped into batches, the next operational step is to create a Dispatch Challan (DC). The DC process helps dealerships formally prepare warranty spare parts for dispatch to the OEM or warehouse for warranty verification and settlement.
The Warranty Control Center in Gain DMS provides a stage-based workflow to manage this process efficiently.
Business Purpose of DC Creation
In automobile warranty operations, DC creation is important for:
Tracking dispatch of failed warranty parts
Maintaining OEM compliance
Generating packing documentation
Monitoring dispatch timelines
Ensuring warranty audit traceability
Managing critical and priority warranty cases
The DC process ensures proper documentation and physical movement tracking of warranty spare parts.
Gain DMS Warranty claim DC creation Tutorial Video
Navigation Path
To create a DC for warranty batches:
Workshop → Warranty → Warranty Control Center
Warranty Workflow Context
Before DC creation:
Warranty Claims are generated automatically
Claims are grouped into Batches
Batches move to:
Batches Awaiting DC CreationDC is created for the batch
The process then moves to:
DC Awaiting eWay Bill

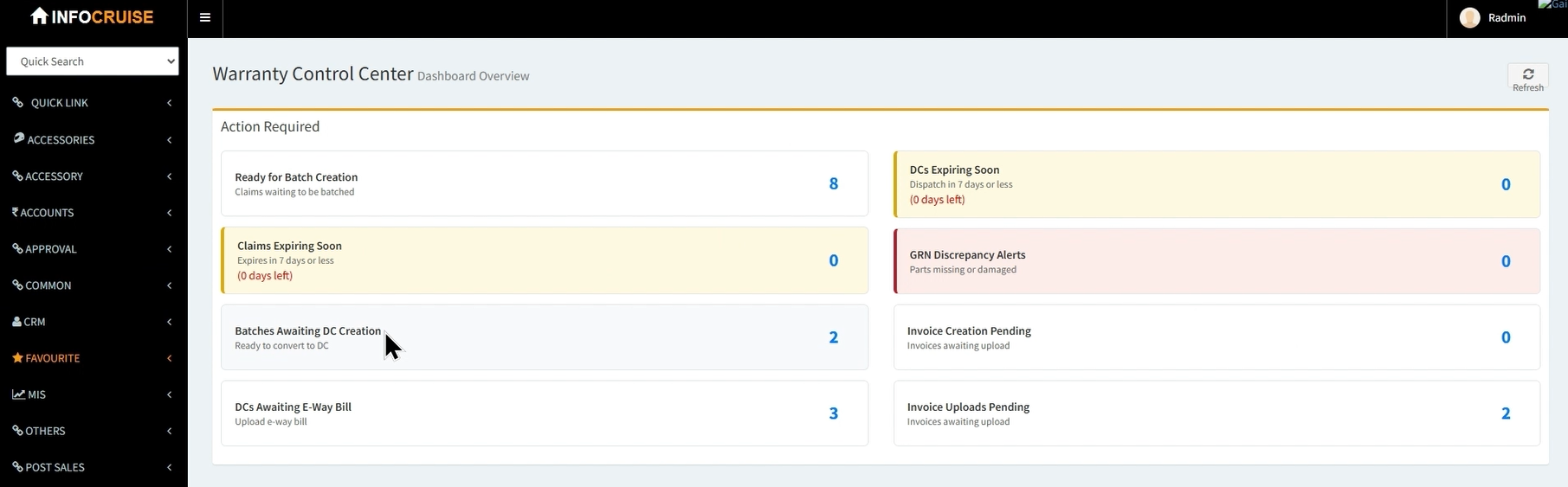

Warranty Control Center Dashboard
Inside the Warranty Control Center dashboard, users can monitor different warranty processing stages.
Relevant stages include:
| Stage | Purpose |
|---|---|
| Claims Expiring Within 7 Days | Alerts users about claims nearing expiry |
| Batches Awaiting DC Creation | Displays batches pending dispatch challan creation |
| DC Awaiting eWay Bill | Displays DCs pending eWay bill generation |
Step-by-Step Process to Create a DC
Step 1: Open Warranty Control Center
Navigate to:
Workshop → Warranty → Warranty Control Center
Locate the stage:
Batches Awaiting DC Creation
The system displays the number of pending batches.
Example:
Batches Awaiting DC Creation = 2
Click on this stage.

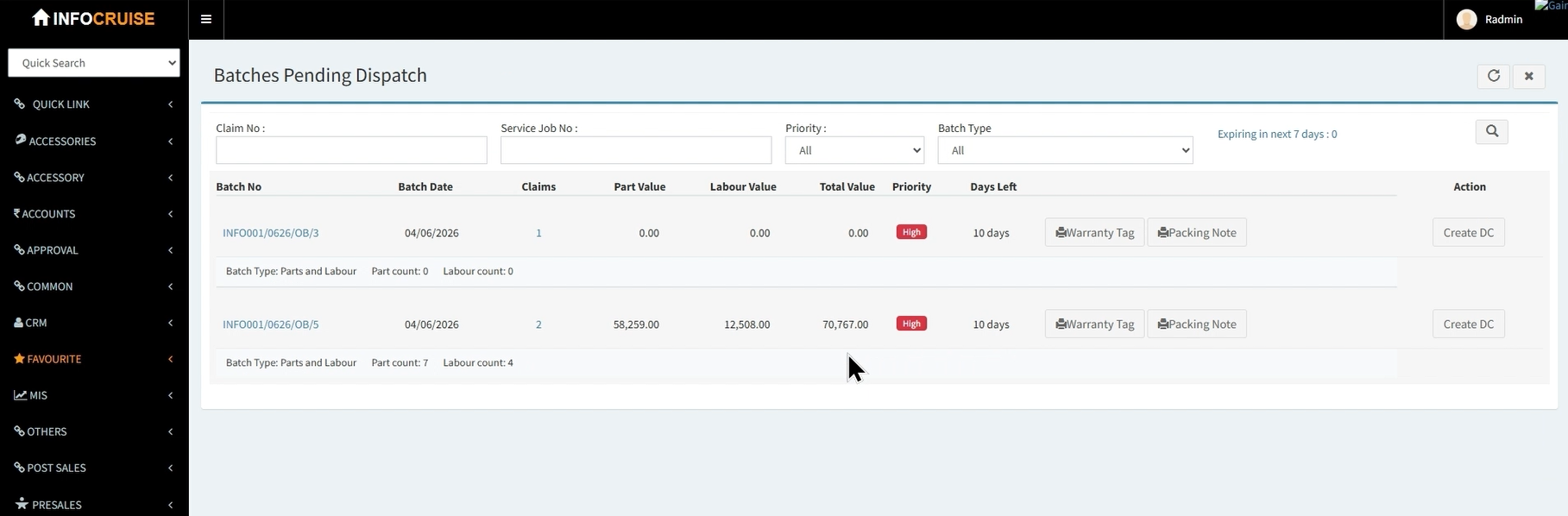

Step 2: View Pending Batches
The system opens the list of batches pending for DC creation.
The following details are displayed:
| Field | Description |
|---|---|
| Batch Number | Unique batch reference |
| Batch Date | Date batch was created |
| Claim Count | Number of claims in the batch |
| Part Value | Total spare parts value |
| Labor Value | Total labor value |
| Total Value | Combined batch value |
| Priority | Priority level of the batch |
| Days Left for DC | Remaining days before dispatch deadline |
Print Options Available
Each batch provides two print options:
1. Warranty Tag
The Warranty Tag contains:
Service Job Number
Claim Number
Vehicle/Product Details
Chassis Information
Part Details
It includes all items available within the batch.
2. Packing Note
The Packing Note contains:
Only dispatch-required spare parts
Spare item details meant for physical shipment
This document is attached with the dispatched warranty parts.
Understanding Warranty Batch Details
Before creating a DC, users can review the complete batch information.
How to Open Batch Details
Click on the respective Batch Number.
This opens the:

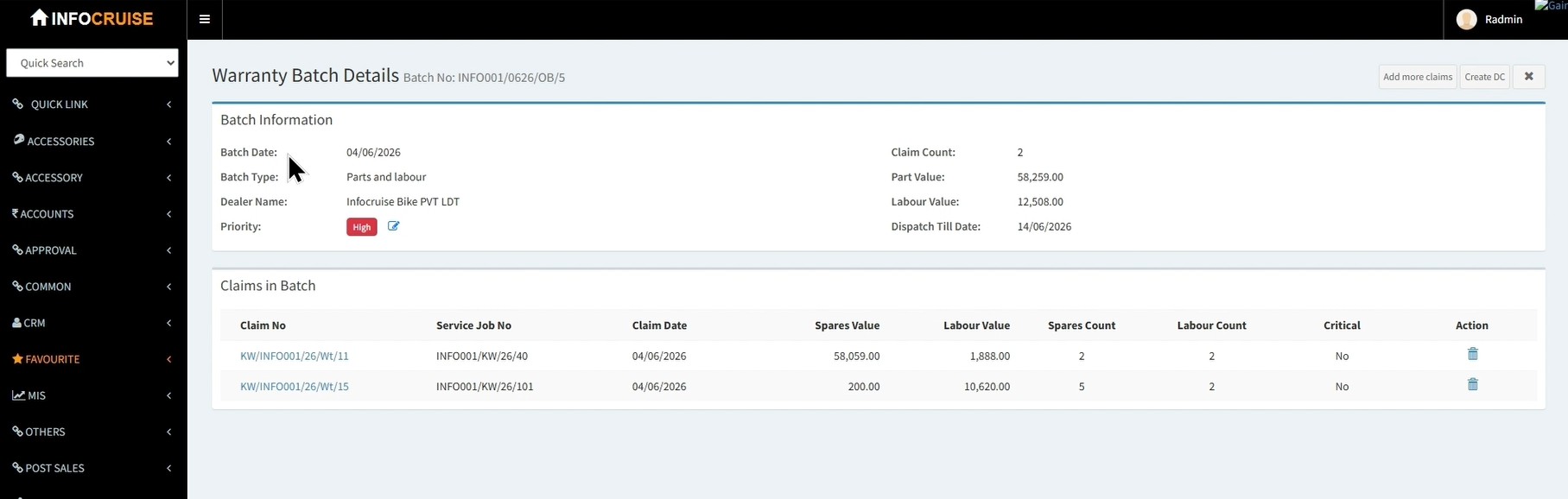

Warranty Batch Detail Screen
Information Available in Warranty Batch Detail Screen
Batch-Level Information
The screen displays:
| Information | Description |
|---|---|
| Batch Number | Unique batch identifier |
| Batch Date | Date of batch creation |
| Batch Type | Labor Only / Part & Labor |
| Dealer Name | Dealer associated with the batch |
| Priority | Batch priority level |
| Dispatch Till Date | Last date allowed for dispatch |
Priority Management
Users can modify the priority of the batch.
Example priorities:
High
Medium
Low
This helps dealerships prioritize urgent warranty dispatches.
Claim-Level Information
For each claim inside the batch, the following details are displayed:
| Field | Description |
|---|---|
| Claim Number | Warranty claim reference |
| Job Card Number | Linked service job card |
| Claim Date | Date of claim creation |
| Spare Value | Spare parts amount |
| Labor Value | Labor amount |
| Spare Count | Number of spare parts |
| Labor Count | Number of labor operations |
| Critical Indicator | Shows whether critical items exist |
Managing Claims Within the Batch
Users can manage claims directly from the Batch Detail screen.
Remove Claims from Batch
If required:
Specific claims can be deleted from the batch
Add More Claims to Batch
Users can click:
Add More Claims
This redirects to the claim selection screen where additional claims can be added into the existing batch.
Understanding Batch Type
The system identifies whether the batch contains:
Only Labor
ORPart and Labor
Example:
Part and Labor Batch
The system also displays:
Part Count
Labor Count
This helps users understand dispatch requirements before DC creation.

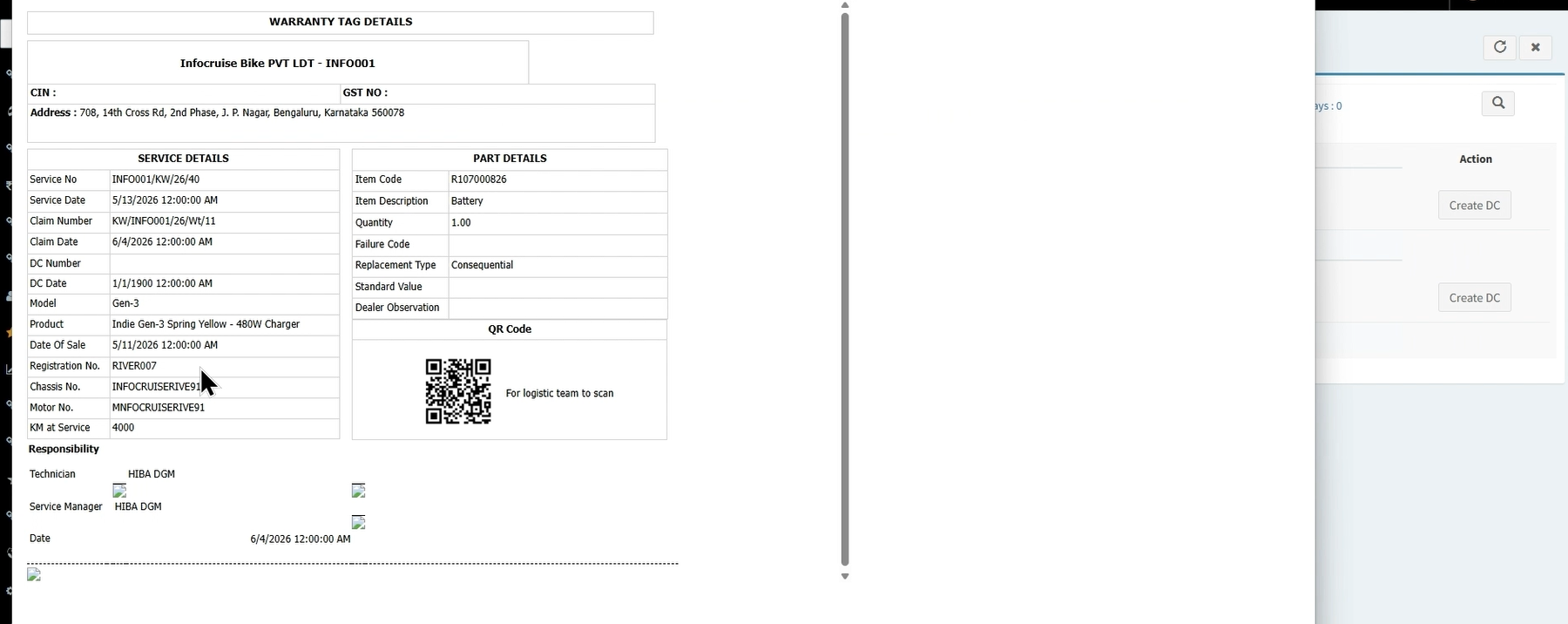

Viewing Warranty Tag
Users can click:
Print Warranty Tag
The Warranty Tag includes:
Vehicle details
Claim details
Spare details
Service job details
This document is generally attached along with warranty dispatch items.

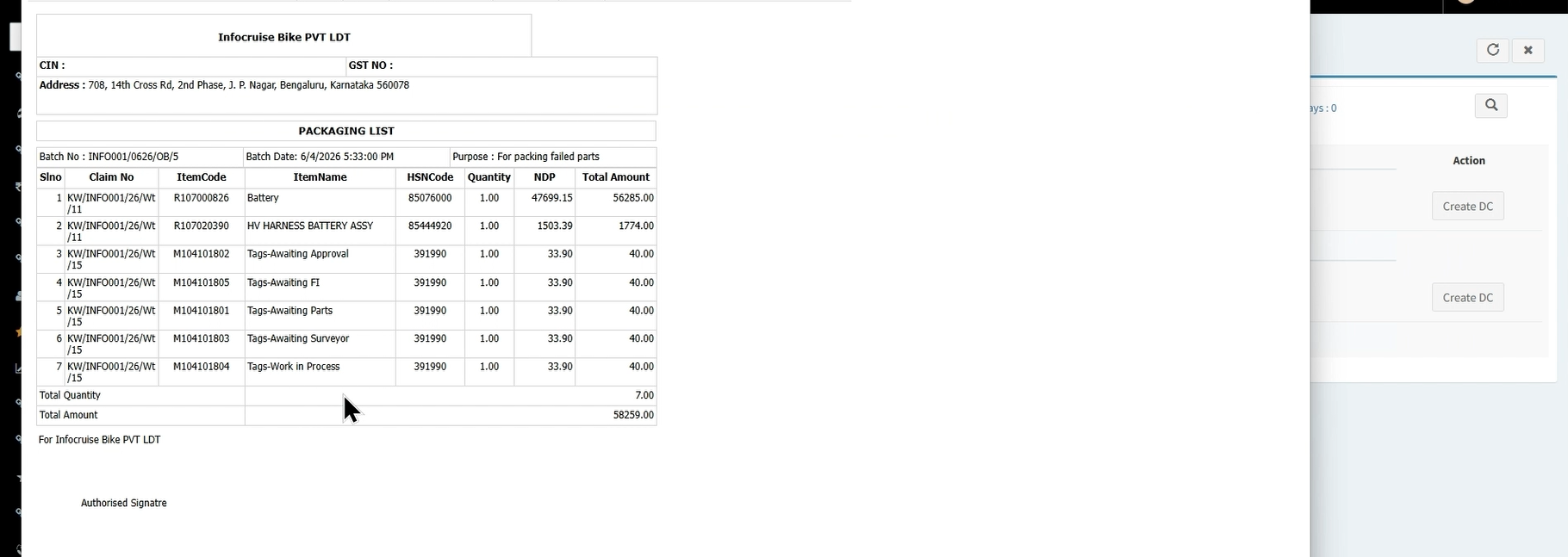

Viewing Packing Note
Users can click:
Print Packing Note
The Packing Note contains:
Only dispatchable spare parts
Shipment-related item details
This is used during packaging and dispatch verification.
Industry Best Practice
In automotive warranty operations:
Warranty Tags help OEMs identify warranty returns
Packing Notes help logistics teams validate dispatched items
Both documents improve dispatch traceability and audit compliance
Step 3: Create DC
After verifying:
Batch details
Claims
Priority
Warranty Tag
Packing Note
Click:
Create DC
The system generates the Dispatch Challan successfully.
Example:
DC Number Created Successfully
Post DC Creation Workflow
After DC creation:
The batch is removed from:
Batches Awaiting DC CreationThe workflow moves to:
DC Awaiting eWay Bill
Example Workflow Movement
Before DC Creation:
Batches Awaiting DC Creation = 2
After DC Creation:
Batches Awaiting DC Creation = 1
DC Awaiting eWay Bill = 4
Process Flow Summary
Warranty DC Creation Flow
Warranty Claims Generated
Claims Grouped into Batch
Batch Moves to DC Pending Stage
User Reviews Batch Details
User Prints Warranty Tag
User Prints Packing Note
User Creates DC
DC Moves to eWay Bill Stage
Key Industry Notes
Why DC Creation is Important in Automobile Warranty Management
Automobile OEMs generally require:
Physical return of failed warranty parts
Proper documentation
Dispatch tracking
Audit-ready records
The DC process helps dealerships:
Maintain compliance
Avoid warranty rejection
Improve dispatch accuracy
Track pending warranty movement
Best Practices for Users
Review batch details carefully before DC creation
Validate dispatch-required parts
Print and attach Warranty Tag properly
Verify Packing Note before shipment
Monitor dispatch deadline dates
Prioritize critical warranty batches
Conclusion
The Warranty DC Creation process in Gain DMS helps dealerships efficiently manage warranty dispatch operations through structured batch handling and documentation.
Using the Warranty Control Center, users can:
Review warranty batches
Manage claims
Print dispatch documents
Create DCs
Track workflow progression
This ensures efficient warranty dispatch management and improved OEM process compliance.
