Handling GRN Discrepancy Parts in Warranty Claim Process – Gain DMS

Overview

In the automobile warranty process, dispatching warranty parts to the OEM is only one part of the complete workflow. Once the shipment reaches the OEM, the received parts are physically verified against the dispatch details provided by the dealership.

During this verification process, the OEM may sometimes identify discrepancies in the dispatched parts. These discrepancies may occur due to reasons such as:

• Missing parts

• Damaged parts

• Incorrect parts received

• Quantity mismatch

• Shipment issues during transit

To help dealerships manage such situations effectively, Gain DMS provides a dedicated discrepancy handling mechanism within the Warranty Control Center.

This functionality allows dealerships to:

• Identify discrepancy parts raised by the OEM

• Review OEM remarks and shipment details

• Decide how the discrepancy should be handled

• Continue the warranty process with proper traceability

In this article, we will understand how discrepancy parts are managed in Gain DMS and what actions can be taken against them.

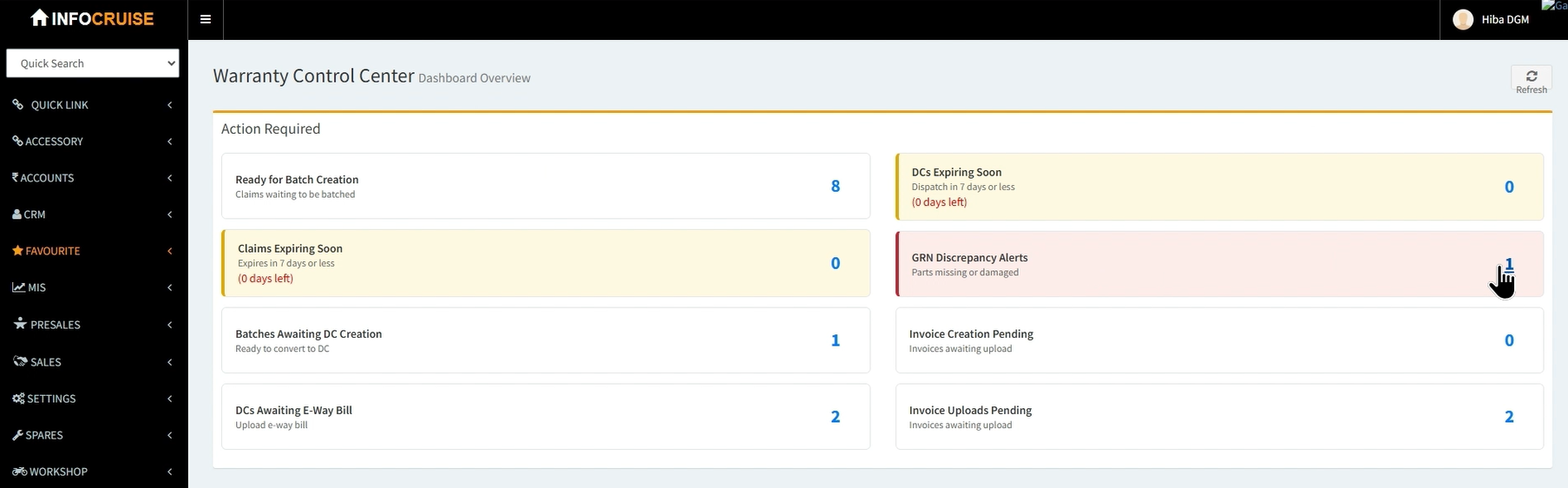

Accessing the Warranty Control Center

To begin the process, navigate to:

Workshop → Warranty → Warranty Control Center

The Warranty Control Center acts as the central operational dashboard for all warranty processing activities. Every stage of the warranty lifecycle is visible here, starting from claim creation until final OEM verification and settlement.

Once the screen opens, users can monitor all pending warranty actions stage by stage.

Understanding the GRN Discrepancy Alert Stage

Among the various workflow stages, one important stage is:

GRN Discrepancy Alert

This stage displays all cases where the OEM has identified discrepancies in the received warranty parts.

The discrepancy may relate to:

• Missing items

• Damaged items

• Incorrect shipment

• Unverified parts

For example:

• GRN Discrepancy Alert = 1

This indicates that one discrepancy case is currently pending action from the dealership side.

Clicking on the count opens the discrepancy handling screen.

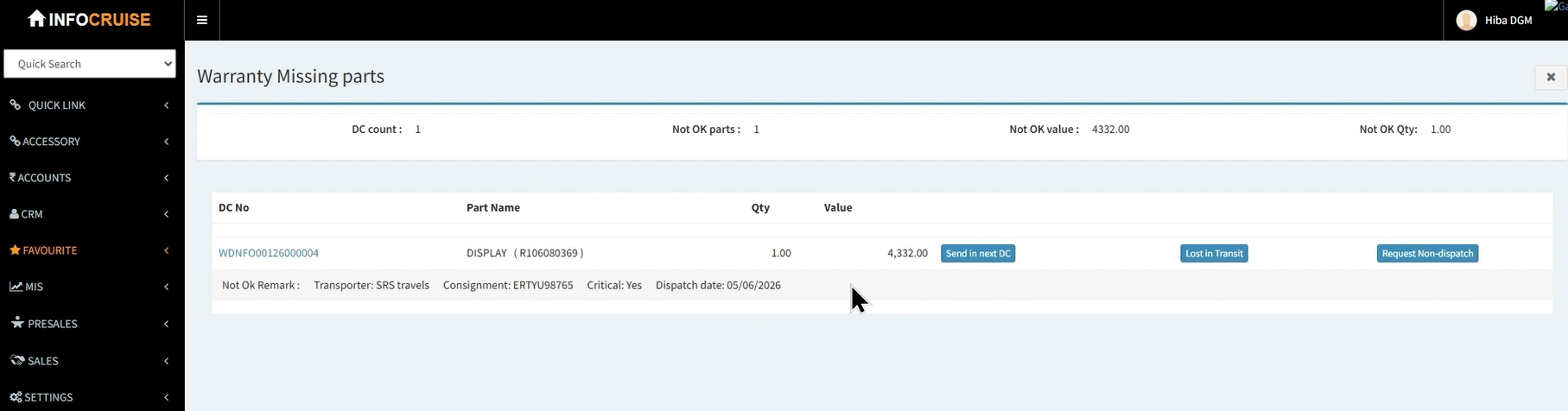

Understanding the Warranty Missing Parts Screen

Once the discrepancy alert is opened, the system displays the Warranty Missing Parts screen.

This screen acts as a working area where dealership users can review and resolve discrepancy cases raised by the OEM.

Each discrepancy entry displays detailed information related to the affected part and shipment.

The screen typically shows:

• DC Number

• Part Information

• Quantity

• Part Value

• OEM Remarks

• Transporter Details

• Consignment Number

• Critical Part Indicator

• Dispatch Date

This information helps users understand the complete background of the discrepancy before taking any action.

Understanding OEM Discrepancy Remarks

One of the important sections in this screen is the:

Not OK Remark

If the OEM identifies any issue with the part, the reason is updated here as a remark.

This remark helps the dealership understand why the part was marked under discrepancy.

In real-world warranty operations, these remarks are extremely useful because they reduce communication gaps between the dealership and OEM teams.

For example, the OEM may specify:

• Part not received

• Damaged condition

• Wrong spare part

• Missing quantity

• Unacceptable packaging

Based on these remarks, the dealership can decide the next corrective action.

Available Actions for Discrepancy Handling

For every discrepancy part, Gain DMS provides three possible actions.

These actions allow the dealership to decide how the issue should be resolved operationally.

The available options are:

1. Send in Next DC

2. Lost in Transit

3. Request Non-Dispatch

Each option has a different business impact within the warranty process.

Option 1: Send in Next DC

The first option is:

Send in Next DC

This option is generally used when the dealership physically still has the part, but the part was either:

• Missed during dispatch

• Not packed correctly

• Not included in the shipment accidentally

In such situations, the dealership can choose to resend the part.

Once this option is selected:

• The discrepancy part is automatically attached to an existing open batch

• That batch can later be converted into a new DC

• The part can then be dispatched again to the OEM

This ensures that the missing part re-enters the warranty dispatch cycle.

Business Scenario for “Send in Next DC”

This option is most suitable when:

• The dealership still possesses the physical part

• The shipment omission happened internally

• The OEM genuinely did not receive the part

In such cases, resending the part helps continue the warranty approval process normally.

Option 2: Lost in Transit

The second option is:

Lost in Transit

This option is used when:

• The dealership had already dispatched the part

• But the shipment was lost during transportation

• Or the OEM was unable to locate the dispatched item

In this situation:

• The dealership no longer has the part

• The OEM also has not received the part successfully

This usually occurs due to logistics or transportation issues.

Business Impact of “Lost in Transit”

When this option is selected:

• The part is treated as unavailable for OEM verification

• The part will not appear for warranty approval processing

• The OEM cannot approve the claim amount for that part

This is because OEM verification requires physical availability of the failed component.

Therefore, this option should only be used when the shipment is genuinely lost.

Option 3: Request Non-Dispatch

The third option is:

Request Non-Dispatch

This option is used when the dealership decides not to physically dispatch the part but still wants the OEM to consider the part for warranty approval.

In such cases:

• The part will not be sent physically

• But the dealership requests the OEM to approve the warranty claim based on available information

This option is generally used in exceptional business situations depending on OEM policy and approval flexibility.

Business Impact of “Request Non-Dispatch”

When this option is selected:

• The part continues to remain visible within the warranty claim

• The OEM can still review and decide whether approval should be granted

However, final approval depends entirely on OEM policies and validation rules.

Important Difference Between the Three Actions

The business behavior of each option differs significantly.

Send in Next DC

• Part will be dispatched again

• Part remains eligible for warranty approval

Lost in Transit

• Part is unavailable physically

• Part will not be considered for warranty approval

Request Non-Dispatch

• Part is not dispatched

• But dealership still requests warranty approval

Understanding this difference is extremely important for dealership warranty teams because the selected option directly impacts warranty settlement outcomes.

Updating the Discrepancy Status

After reviewing the discrepancy details, the user can select the appropriate action against the respective part.

For example:

• Lost in Transit

Once the action is selected, the system updates the discrepancy status.

The system then displays the confirmation message:

Status Updated Successfully

What Happens After Updating the Status?

Once the discrepancy is handled successfully:

• The case is removed from the GRN Discrepancy Alert stage

• The pending discrepancy count reduces automatically

For example:

• GRN Discrepancy Alert changes from 1 to 0

This indicates that all discrepancy cases have been addressed.

Industry Importance of Discrepancy Handling

In automobile warranty operations, discrepancy management is extremely critical because OEM approvals are highly dependent on:

• Physical part verification

• Shipment traceability

• Correct quantity validation

• Proper logistics handling

Without a structured discrepancy handling mechanism, dealerships may face:

• Warranty rejection

• Delayed claim settlement

• Audit issues

• Logistics disputes

• OEM escalation cases

Gain DMS helps avoid these operational challenges by providing a clear and traceable discrepancy management workflow.

Best Practices for Dealership Users

While handling discrepancy parts, dealership users should always:

• Review OEM remarks carefully

• Verify transporter and consignment details

• Confirm physical stock availability before choosing actions

• Use “Lost in Transit” only for genuine logistics losses

• Re-dispatch missing parts whenever possible

• Monitor discrepancy alerts regularly

These practices improve warranty transparency and reduce approval delays.

Conclusion

The GRN Discrepancy Handling process in Gain DMS helps dealerships efficiently manage missing, damaged, or disputed warranty parts identified by the OEM.

Using the Warranty Control Center, users can:

• Identify discrepancy cases

• Review OEM remarks

• Analyze shipment details

• Take corrective action

• Continue the warranty workflow appropriately

This structured process improves operational control, reduces warranty disputes, and ensures better coordination between dealerships, logistics teams, and OEM warranty departments.
