Warranty Invoice Generation and Signed Invoice Upload Process in Gain DMS

Overview

In the automobile warranty claim lifecycle, the process does not end with dispatching warranty parts or resolving discrepancies. Once the OEM completes the quality verification process and approves the warranty claims, the dealership must generate the corresponding invoice and upload the signed invoice copy into the DMS system for settlement processing.

This stage is extremely important because it acts as the financial bridge between the dealership and the OEM. Only after invoice generation and successful document submission can the OEM proceed with warranty settlement and reimbursement.

To streamline this workflow, Gain DMS provides a dedicated invoice management process within the Warranty Control Center. This process allows dealerships to:

• View OEM invoice reference requests

• Generate warranty invoices

• Download invoice copies

• Upload signed and stamped invoice documents

• Track pending invoice submissions

• Proceed toward settlement processing

This article explains the complete invoice generation and upload process in Gain DMS in a structured and easy-to-understand manner.

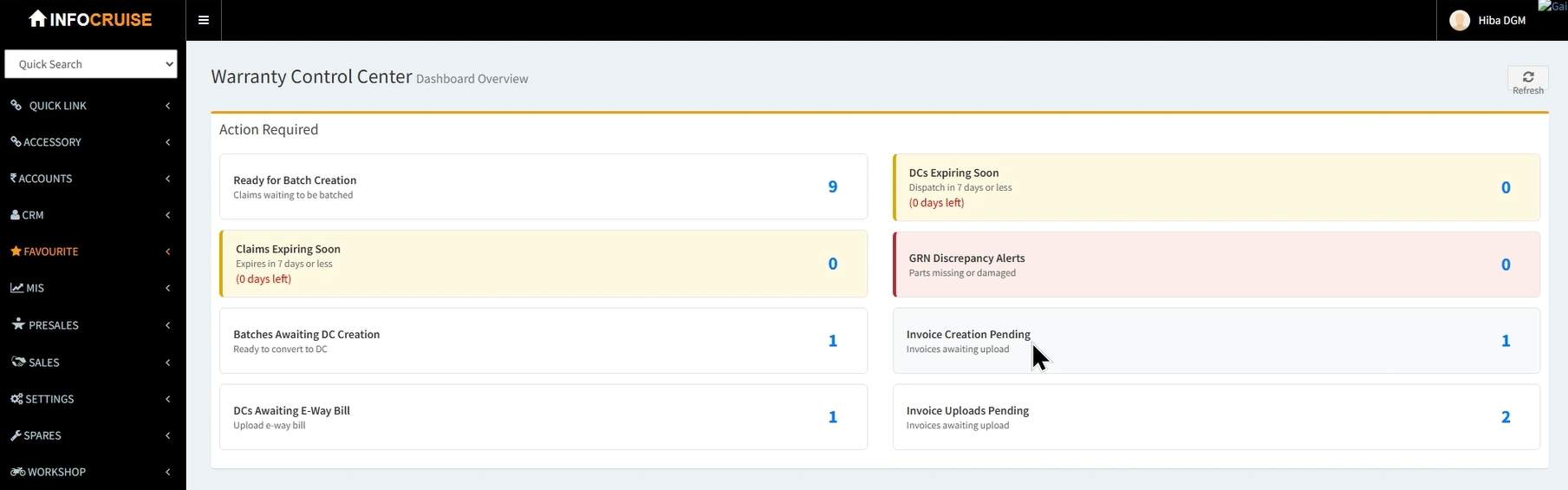

Accessing the Warranty Control Center

To begin the process, navigate to:

Workshop → Warranty → Warranty Control Center

The Warranty Control Center serves as the centralized dashboard for managing all warranty processing stages within the dealership.

Every stage of the warranty lifecycle is visible here, including:

• Claim processing

• Batch creation

• DC dispatch

• OEM verification

• Discrepancy handling

• Invoice processing

• Settlement tracking


---

Understanding the Invoice Creation Pending Stage

Once the OEM Warranty QC Team reviews the dispatched claims and approves the eligible warranty parts or labor, the OEM initiates the next step by creating an:

Invoice Reference Request

This reference request is sent to the dealership so that the dealership can generate the actual invoice against the approved warranty amount.

Only after the OEM raises this request will the case appear under:

Invoice Creation Pending

For example:

• Invoice Creation Pending = 1

This indicates that one approved warranty reference is waiting for invoice generation from the dealership side.

Why Invoice Reference Requests Are Important

In automobile warranty operations, OEM approval alone is not sufficient for settlement.

The dealership must still:

• Generate the invoice

• Attach the approved value

• Submit signed financial documents

• Complete compliance documentation

This ensures:

• Proper accounting traceability

• Tax compliance

• Warranty reimbursement accuracy

• Audit transparency between OEM and dealership

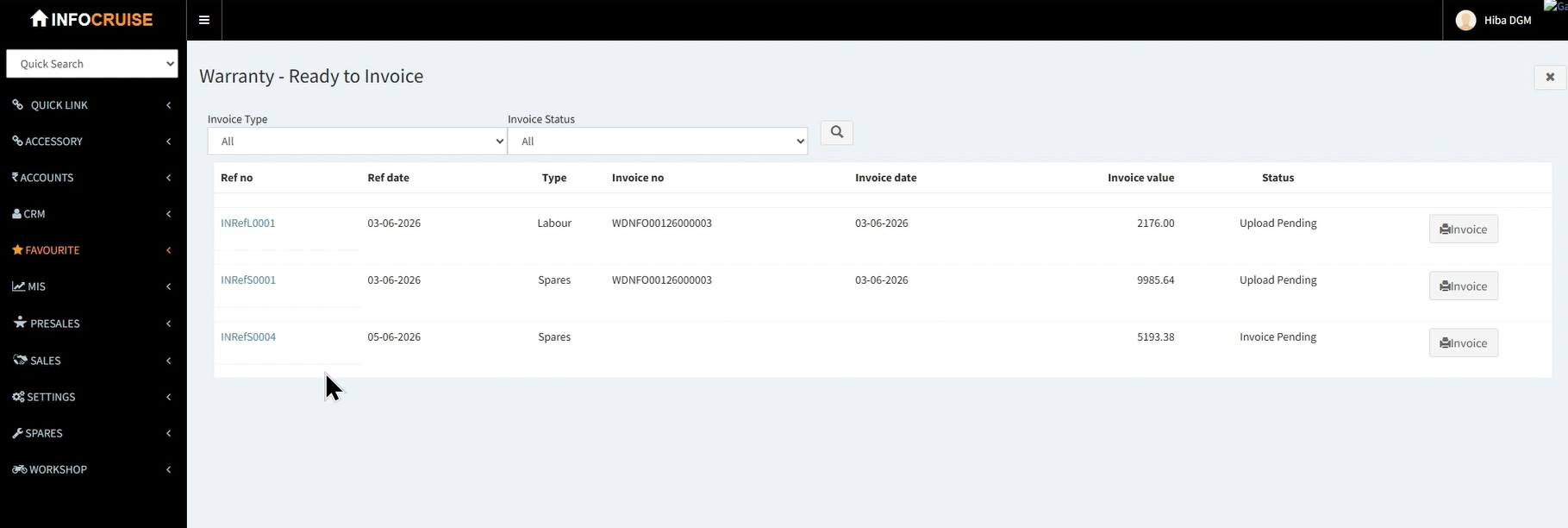

Opening the Invoice Creation Pending List

When users click on the Invoice Creation Pending stage, the system opens the list of all invoice references that are ready for invoicing.

This screen displays:

• OEM Reference Number

• Reference Date

• Invoice Type

• Invoice Number

• Invoice Date

• Invoice Value

• Current Status

This screen helps dealership users clearly understand:

• Which references are pending invoice generation

• Which invoices are already created

• Which invoices are pending upload


---

Understanding Invoice Statuses

The system generally displays two important statuses:

Invoice Pending

This means:

• OEM has generated the reference request

• But the dealership has not yet created the invoice

Upload Pending

This means:

• Invoice has already been generated

• But the signed invoice copy is still not uploaded into the DMS

These statuses help dealerships monitor pending financial actions efficiently.

Understanding the OEM Reference Number

The reference number displayed in the screen is generated by the OEM.

However:

• The invoice number

• And invoice date

must be generated by the dealership.

For example:

• OEM Reference Number may already exist

• But Invoice Number and Invoice Date fields remain blank until the dealership creates the invoice

This clearly separates OEM approval activity from dealership financial processing.

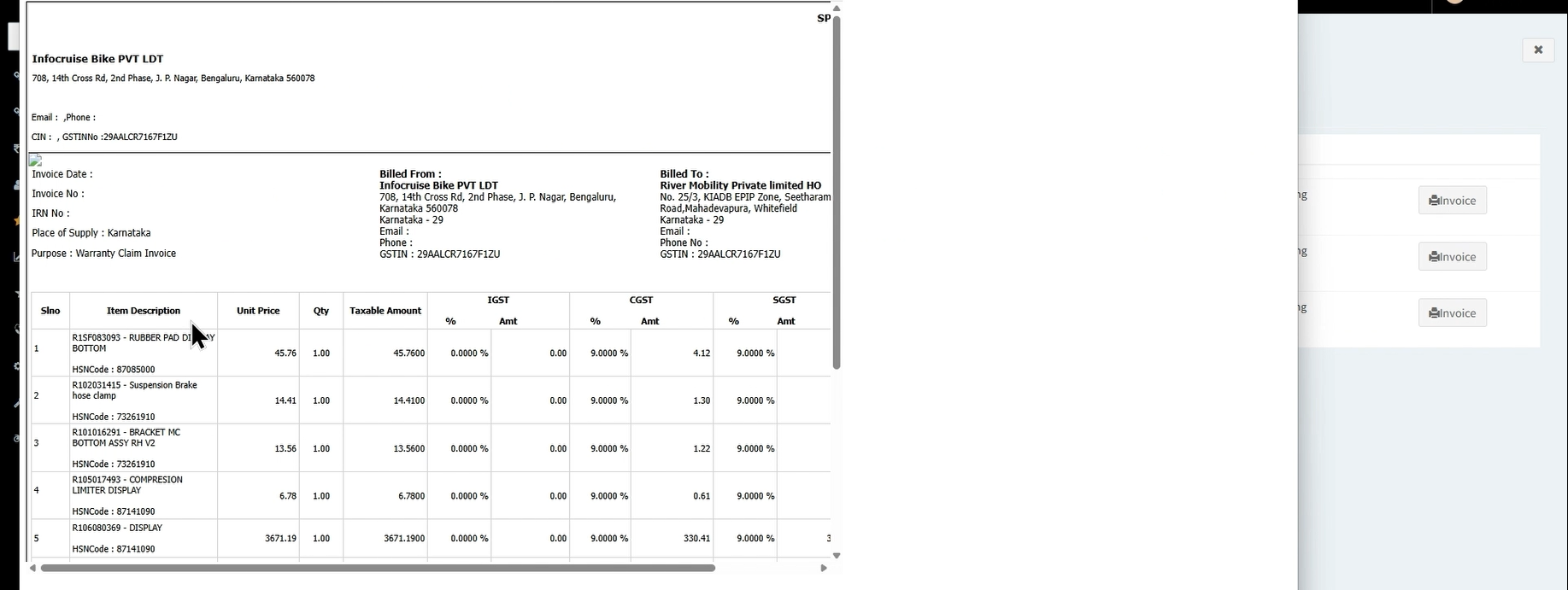

Viewing the Invoice Before Generation

Users can click on the:

Invoice Option

to preview the invoice details.

The system displays:

• Dealer billing information

• OEM billing details

• Approved parts and labor

• Invoice value

However, at this stage:

• Invoice Number is not available

• Invoice Date is not available

Because of this, the invoice printout is still considered incomplete and invalid for official processing.

Understanding Why the Invoice Is Not Yet Valid

Until the dealership officially generates the invoice:

• The document acts only as a draft preview

• It cannot be treated as a financial document

• It cannot be submitted for settlement

Only after invoice number generation does the invoice become an official accounting document.

Viewing Detailed Invoice Information

Users can also click directly on the:

Reference Number

This opens the Warranty Invoice Details screen.

This screen provides a complete breakdown of:

• Dealer information

• Invoice value

• Included claim numbers

• Part quantities

• Part values

• Warranty reference details

This allows users to verify all financial and operational details before generating the invoice.

Generating the Warranty Invoice

Once all details are verified, users can click on:

Create Invoice

After clicking this option:

• The system automatically generates the Invoice Number

• Invoice Date is updated

• The invoice becomes officially valid

For example:

• Invoice Number ending with “06” gets created successfully

Once generated, the process moves to the next stage:

• Signed Invoice Upload


---

Understanding the Signed Invoice Upload Process

In real-world dealership operations, invoice generation alone is not sufficient.

The standard industry process generally works like this:

1. Invoice is generated in the DMS

2. Invoice copy is downloaded or printed

3. Authorized dealership signatory signs and stamps the invoice

4. Signed invoice is scanned

5. Scanned copy is uploaded back into the DMS

This process ensures:

• Financial authenticity

• Legal validation

• Audit compliance

• OEM approval readiness


---

Verifying the Generated Invoice

Once the invoice is generated, users can print the invoice again.

Now the printout displays:

• Invoice Number

• Invoice Date

At this stage, the invoice becomes an officially valid document.

This is the copy that should be signed and stamped by the dealership.

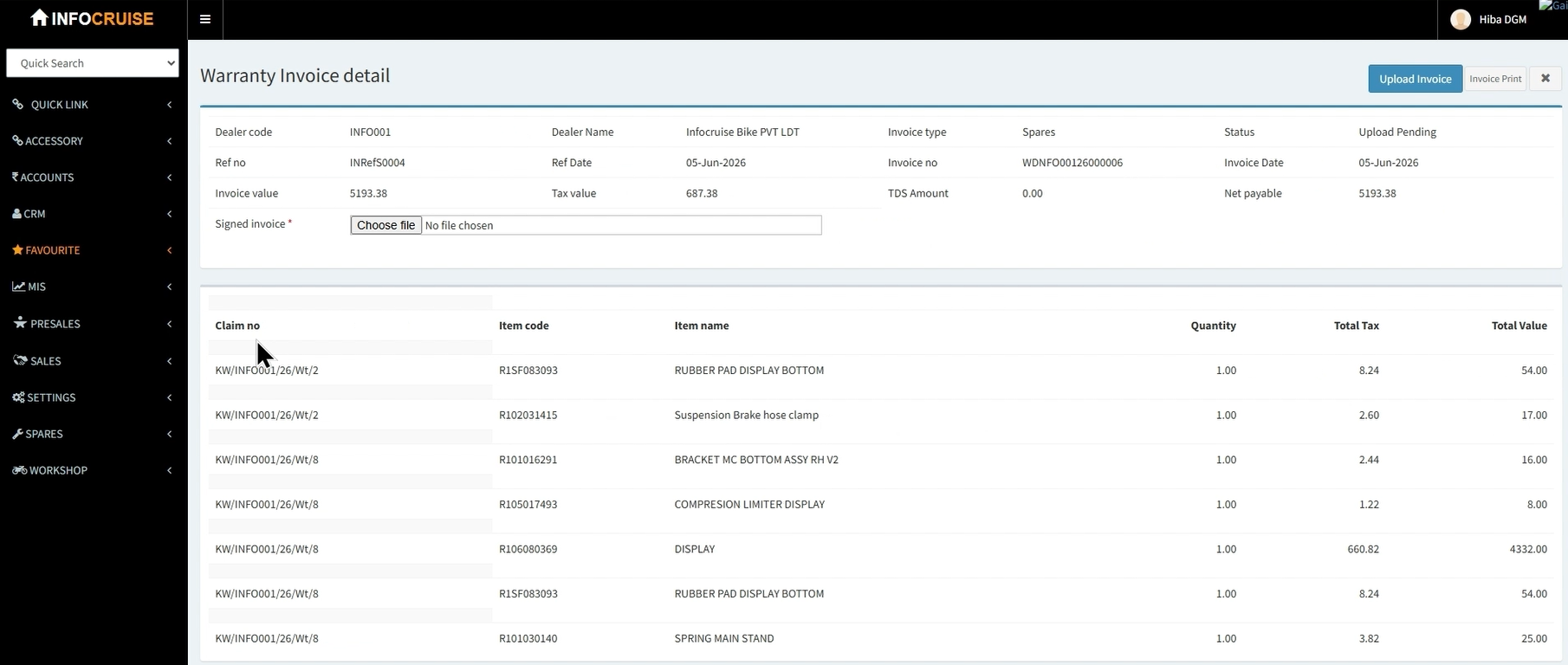

Uploading the Signed Invoice Copy

After signing and scanning the invoice, users can return to the Warranty Invoice Details screen.

The system provides an option to:

Upload Signed Document

The dealership must:

• Save the signed invoice scan locally

• Select the file

• Upload it into the DMS

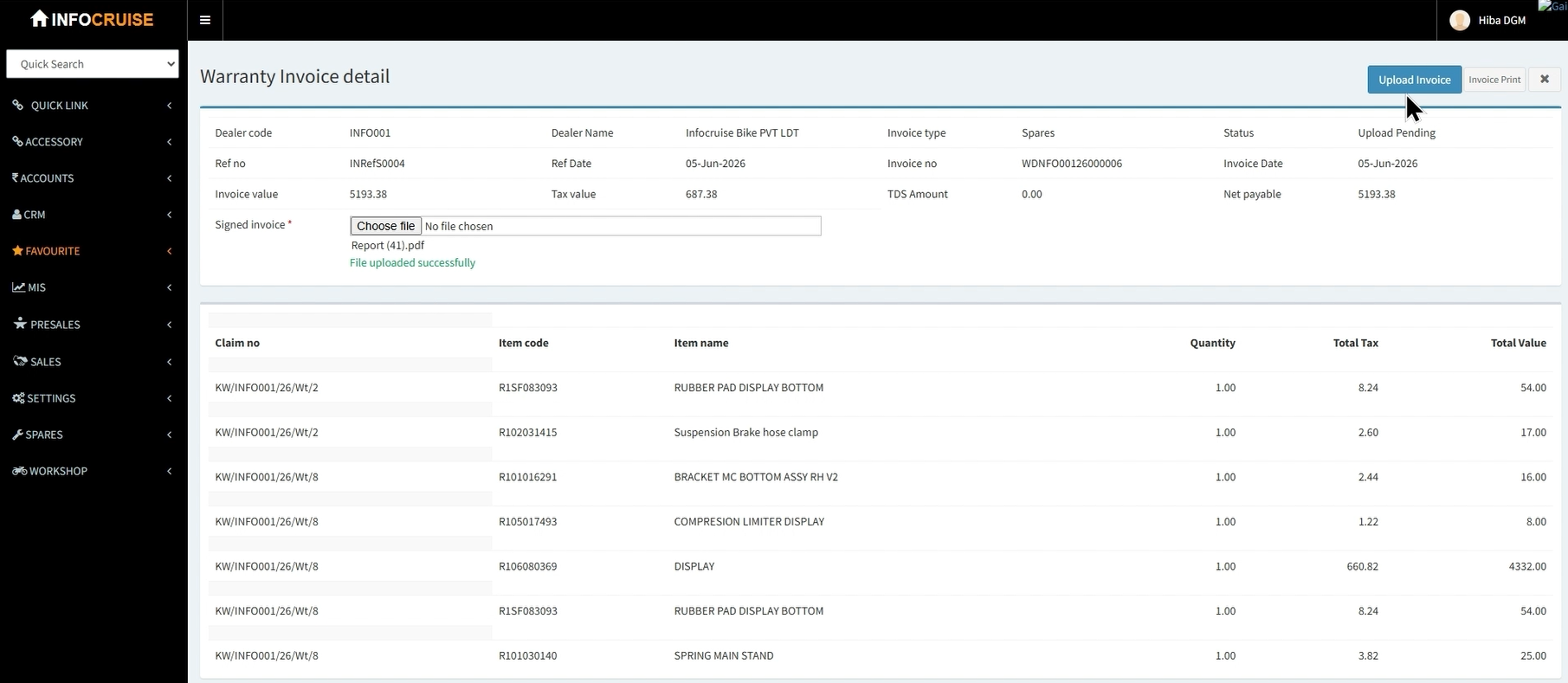

Once uploaded successfully, the system confirms the upload.

Finally, users can click:

Upload Invoice

to complete the submission process.

What Happens After Uploading?

Once the signed invoice copy is uploaded:

• The case moves out of the Invoice Upload Pending stage

• The OEM can review the uploaded document

The OEM may:

• Accept the invoice

• Request re-upload

• Reject unclear or incorrect files

For example:

• If the uploaded scan is unclear

• Or the wrong file is uploaded

the OEM can request the dealership to upload the document again.

Understanding the Settlement Pending Stage

After successful invoice upload, the next stage becomes:

Settlement Pending

At this stage:

• OEM processes the financial settlement

• Warranty reimbursement activities are handled by the OEM

This stage is generally managed from the OEM side and requires no further dealership action unless clarification is requested.

How the Dashboard Count Changes

The Warranty Control Center dynamically updates counts at every stage.

For example:

• Invoice Creation Pending may reduce from 1 to 0

• Invoice Upload Pending may increase temporarily

• After upload completion, the case disappears from pending upload

This real-time workflow visibility helps dealerships track pending financial activities efficiently.

Industry Importance of Invoice Upload in Warranty Process

In the automobile industry, warranty settlements are highly documentation-driven.

OEMs require:

• Proper invoice references

• Signed financial documents

• Approved warranty claims

• Audit-ready invoice copies

Without proper invoice upload processes, dealerships may face:

• Settlement delays

• Payment hold

• Audit non-compliance

• Warranty reimbursement rejection

Gain DMS helps eliminate these issues by providing a structured and traceable invoice workflow.

Best Practices for Dealership Users

While managing warranty invoice processing, dealership users should always:

• Verify OEM reference details before invoicing

• Cross-check approved claim values

• Ensure invoice numbers are generated correctly

• Upload clear signed invoice scans

• Verify stamp and authorized signatory visibility

• Maintain local backup copies of uploaded invoices

• Monitor upload pending stages regularly

These practices improve settlement efficiency and reduce OEM clarification cycles.

Conclusion

The Warranty Invoice Generation and Upload process in Gain DMS helps dealerships complete the financial closure stage of the warranty lifecycle in a structured and compliant manner.

Using the Warranty Control Center, dealerships can:

• View OEM invoice requests

• Generate official warranty invoices

• Upload signed financial documents

• Track invoice processing stages

• Proceed toward OEM settlement

This workflow ensures better financial transparency, smoother warranty reimbursement, and stronger coordination between dealership accounts teams and OEM warranty departments.
