Service Booking Process in DMS

Purpose

The Service Booking process in DMS is used to schedule customer vehicle service appointments in advance. It helps dealerships manage workshop load, technician availability, customer waiting time, pickup/drop coordination, and service planning efficiently.

A properly managed service booking process improves workshop productivity, customer satisfaction, bay utilization, and appointment retention performance.

Service Booking Process

Navigation Path

Workshop → Service Booking

Overview

The Service Booking module allows dealership users to:

• Schedule future vehicle service appointments
• Allocate workshop time slots
• Manage pickup and drop requirements
• Identify repeat, recall, and breakdown cases
• Track booking status and customer show-up ratios
• Convert bookings into service job cards

Step-by-Step Process

Step 1: Open Service Booking Module

1. Login to DMS.

2. Navigate to:

   Workshop → Service Booking

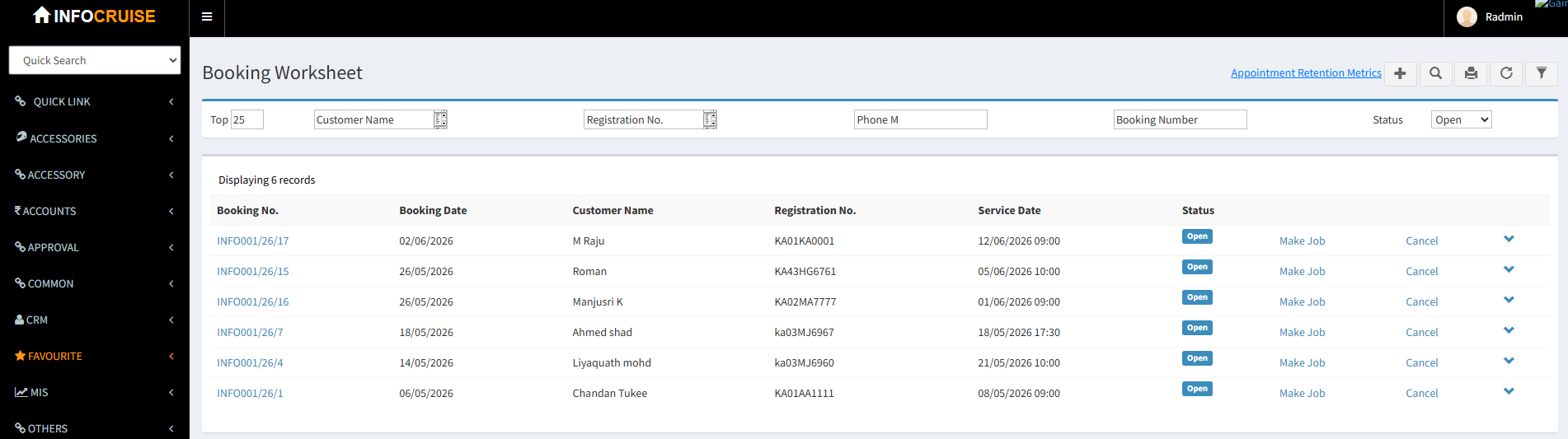

3. The Service Booking Worksheet screen will open.

This screen displays:

• All open service bookings
• Booking status
• Customer details
• Vehicle details
• Service dates
• Booking types


Step 2: Create a New Service Booking

1. Click on the Plus (+) button.

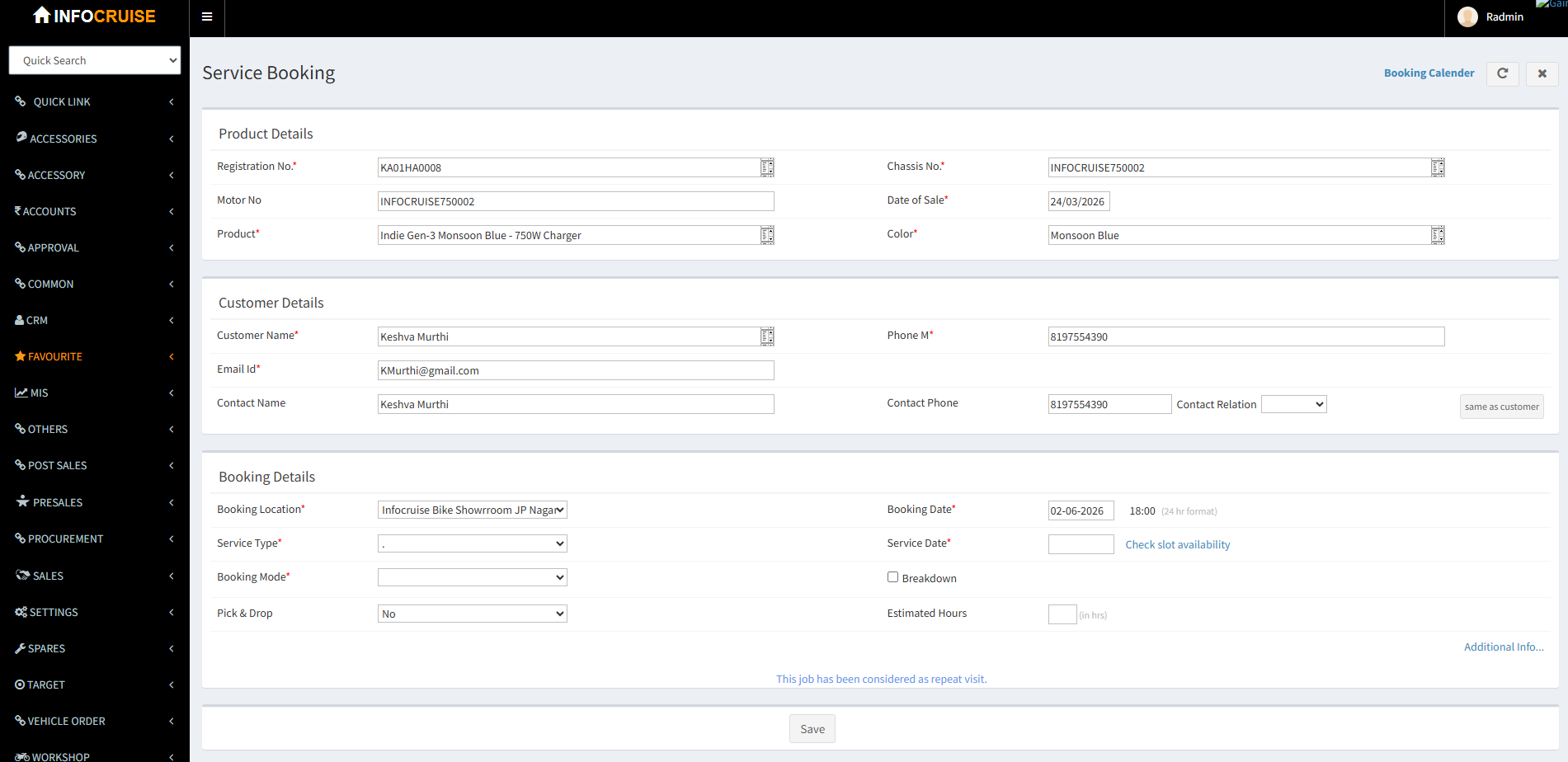

2. The Service Booking Creation Screen will open.


Customer & Vehicle Details

Step 3: Enter Chassis Number

1. Enter the vehicle chassis number.
2. Select the chassis using the keyboard and press Enter.

Important:
Always use the keyboard for chassis selection. Avoid using the mouse for selection to ensure proper vehicle loading and data validation.

Step 4: Verify Auto-Loaded Information

Once the chassis is selected, the following details will load automatically:

• Customer Name
• Vehicle Information
• Contact Details
• Registration Details

Step 5: Update Contact Information

Update the following:

Contact Name

Name of the person bringing the vehicle for service.

Contact Relation

Specify the relationship with the vehicle owner.

Examples:

• Owner
• Relative
• Friend
• Employee

Industry Standard:
Capturing accurate contact information ensures proper communication during service updates, approvals, and vehicle delivery.

Booking Details

Step 6: Verify Booking Location

The booking location will automatically display as the currently logged-in branch/workshop.

Step 7: Verify Booking Date

The booking date is automatically set as the current system date.

Step 8: Select Service Date

1. Choose the preferred service date.
2. Service booking must always be scheduled for a future date.

Example:

• Next day
• Upcoming weekend
• Customer preferred date


Step 9: Select Service Type

Choose the applicable service type.

Examples:

• First Service
• Second Service
• Periodic Maintenance
• Accident Repair
• General Service
• Breakdown Service


Step 10: Select Booking Mode

Booking Mode indicates how the booking request was received.

Available options may include:

• Tele In
• Walk-In
• Website
• Mobile App
• Outbound Call
• Campaign Booking

Example:

• If the customer called the dealership, select Tele In.

Industry Standard:
Booking mode tracking helps dealerships measure channel effectiveness and customer engagement performance.

Pickup & Drop Management

Step 11: Specify Pickup / Drop Requirement

Based on customer preference, select:

• Only Pickup Required
• Only Drop Required
• Pickup & Drop Required
• Not Required

Industry Standard:
Pickup and drop planning improves customer convenience and helps optimize logistics resource allocation.

Slot Management

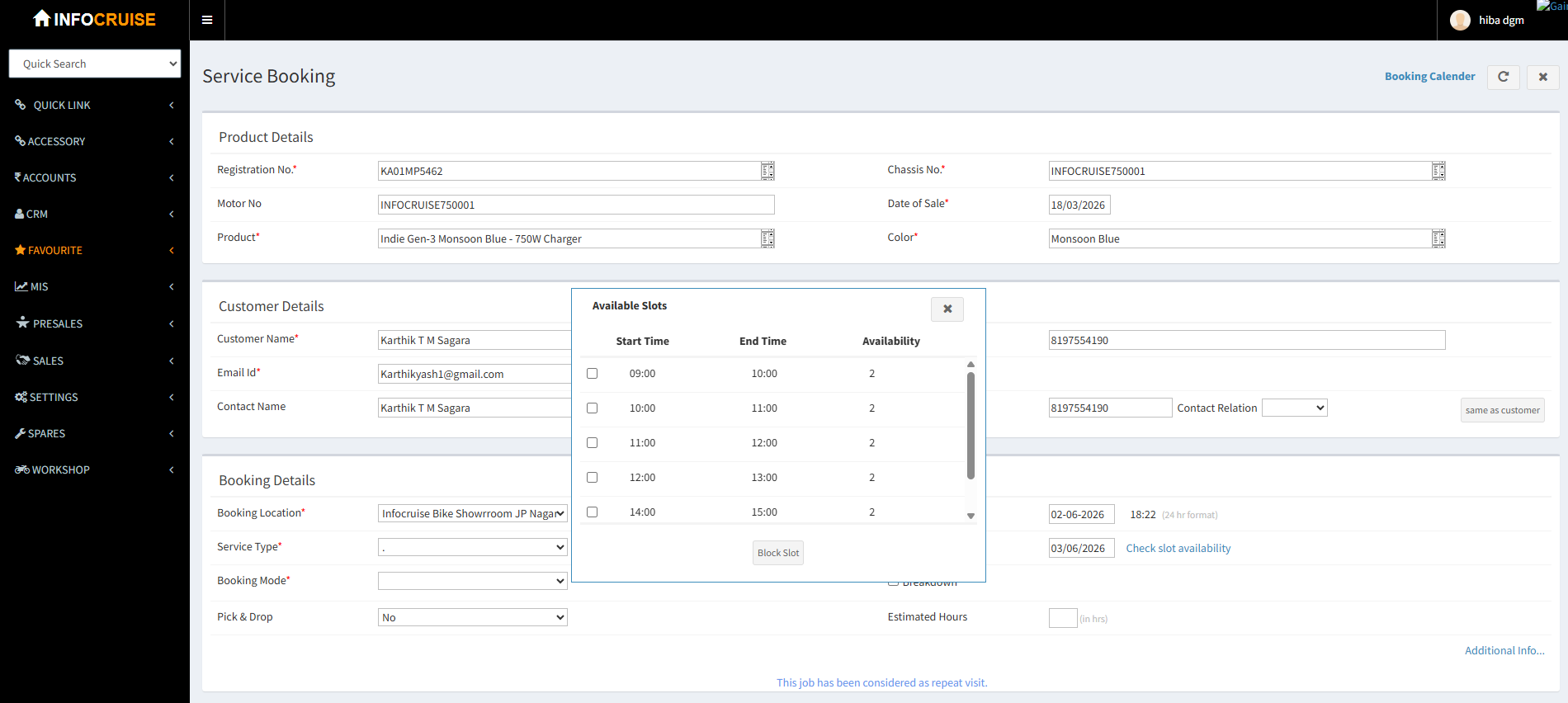

Step 12: Check Slot Availability

1. Click on Slot Availability.
2. Available workshop slots will display.

The system shows:

• Hour-wise slots
• Total slot capacity
• Booked slots
• Available slots

Example:

• 10:00 AM – 11:00 AM
• 11:00 AM – 12:00 PM


Step 13: Select Service Slot

1. Choose the customer’s preferred slot.
2. Once selected, the system automatically updates:

• Start Time
• End Time

Industry Standard:
Slot-based booking helps dealerships prevent workshop overloading and improves vehicle turnaround time (TAT).

Breakdown Service Handling

Step 14: Mark Breakdown Cases (If Applicable)

If the vehicle is brought due to breakdown:

1. Enable the Breakdown checkbox.
2. Specify towing details.

Examples:

• Customer Towed
• RSA Towed
• Dealer Pickup

Industry Standard:
Breakdown tracking enables dealerships to monitor roadside assistance efficiency and emergency service response time.

Additional Booking Information

Step 15: Update Additional Flags

Based on service conditions, update applicable fields:

Repeat Job

Enable if the vehicle returned for the same issue.

Standby Vehicle Requested

Enable if customer requested a replacement vehicle.

Recall Case

Enable if the vehicle is reporting for OEM recall activity.

Remarks

Add any special customer instructions or observations.

Example:

• Customer waiting
• Urgent delivery required
• Pickup before 6 PM


Step 16: Save Service Booking

1. Verify all mandatory fields.
2. Click on Save.

The system displays:

“Successfully Saved”

The booking will now appear in the Service Booking Worksheet.

Booking Status Management

The worksheet displays booking status such as:

• Open
• Upcoming
• Expired
• Cancelled
• Converted to Job Card

Convert Booking to Job Card

Step 17: Create Job Card on Customer Arrival

When the customer arrives for service:

1. Click on Make Job
2. The system redirects to the Service Job Card screen.
3. Vehicle and customer details load automatically.

The standard job card process can then be continued.

Cancel Service Booking

Step 18: Cancel Booking (If Customer Does Not Visit)

1. Click on Cancel
2. Enter cancellation reason
3. Click Save

Examples of cancellation reasons:

• Customer unavailable
• Booking postponed
• Vehicle repaired elsewhere
• Duplicate booking

Once cancelled:

• The booking is removed from the active booking list.

Appointment Retention Metrics

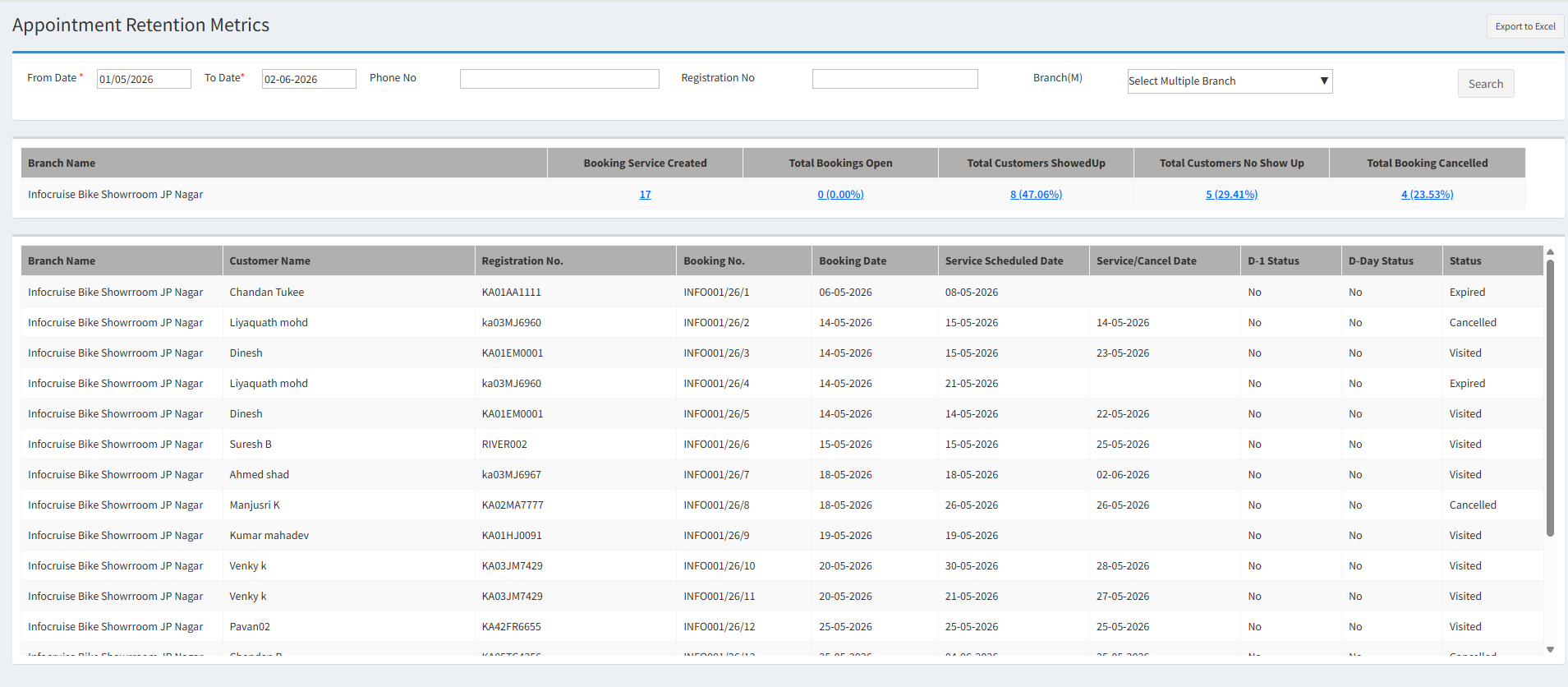

Step 19: View Booking Analytics

Click on:
Appointment Retention Metrics

The system provides:

• Total bookings created
• Customer show-up count
• Pending bookings
• Cancelled bookings
• Expired bookings
• Retention percentage


Export Booking Reports

Users can export booking analytics to Excel for:

• Management reporting
• Workshop planning
• Customer retention analysis
• Service forecasting

Industry Standard Best Practices

Appointment Planning

• Avoid overbooking workshop slots
• Maintain balanced bay utilization
• Allocate sufficient technician capacity

Customer Communication

Always confirm:

• Service date
• Slot timing
• Pickup/drop requirement
• Estimated delivery timeline

Breakdown Prioritization

Breakdown vehicles should receive:

• Immediate inspection
• Priority slot allocation
• Faster job card creation

Repeat Repair Monitoring

Repeat jobs should be monitored carefully to:

• Improve first-time fix rate
• Reduce customer dissatisfaction
• Avoid repeated workshop visits

Recall Management

Recall bookings should be:

• Identified during booking stage
• Prioritized for parts availability
• Scheduled with OEM compliance timelines

Important Notes

• Mandatory fields marked with red asterisks must be completed.
• Slot availability depends on workshop capacity configuration.
• Booking date defaults to current date.
• Service date must always be future dated.
• Chassis selection should be done using keyboard navigation.
• Cancelled bookings are removed from active booking lists.
• Service bookings can be directly converted into job cards.

Process Summary

The Service Booking process helps dealerships:

• Manage workshop appointments efficiently
• Improve customer experience
• Optimize technician workload
• Reduce waiting time
• Increase workshop productivity
• Track appointment retention and booking performance

Proper booking management ensures smooth workshop operations and better service planning across the dealership network.
