How to return a spare in Service Job card in Gain DMS: A Step-by-Step Guide

1. Introduction

The Service Job Spare Return process in DMS is used to return spare parts back to dealership inventory after they were already issued against a service job card.

This process is commonly used when:

• A wrong spare part was issued
• The issued part was not used during repair
• Excess quantity was issued
• The repair scope changed
• Insurance/warranty approval was not received
• Technician returned unused material

The spare return process ensures:

• Accurate inventory stock
• Correct customer billing
• Proper costing
• Traceability of issued and returned parts
• Audit compliance


2. Business Purpose of Spare Return

A proper spare return process helps dealerships:

• Prevent incorrect billing
• Maintain accurate stock valuation
• Reduce inventory mismatch
• Improve technician accountability
• Maintain warranty and insurance compliance
• Support internal audit controls

3. Navigation Path

Go to:

Workshop → Service Job Cards → Service Job (Action) → Spare Return

4. Opening the Spare Return Screen

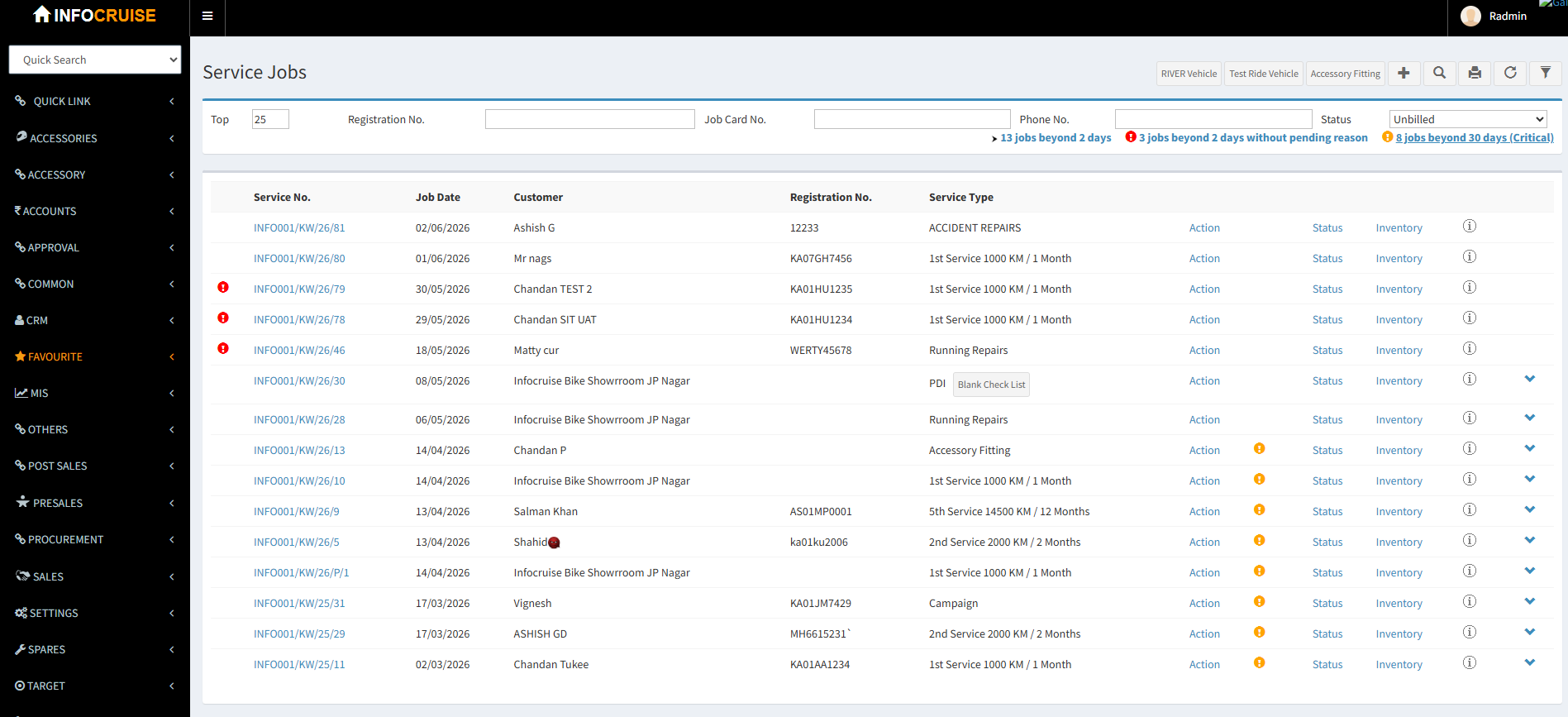

Step 1: Open Service Job Card Worksheet

After navigating to Service Job Cards, the worksheet screen displays all available job cards.

The screen typically includes:

• Job Card Number

• Job card Date
• Customer Name
• Vehicle Number
• Service Type

Step 2: Select the Required Job Card

Locate the job card for which the spare return must be performed.

Click:

Action → Item Return

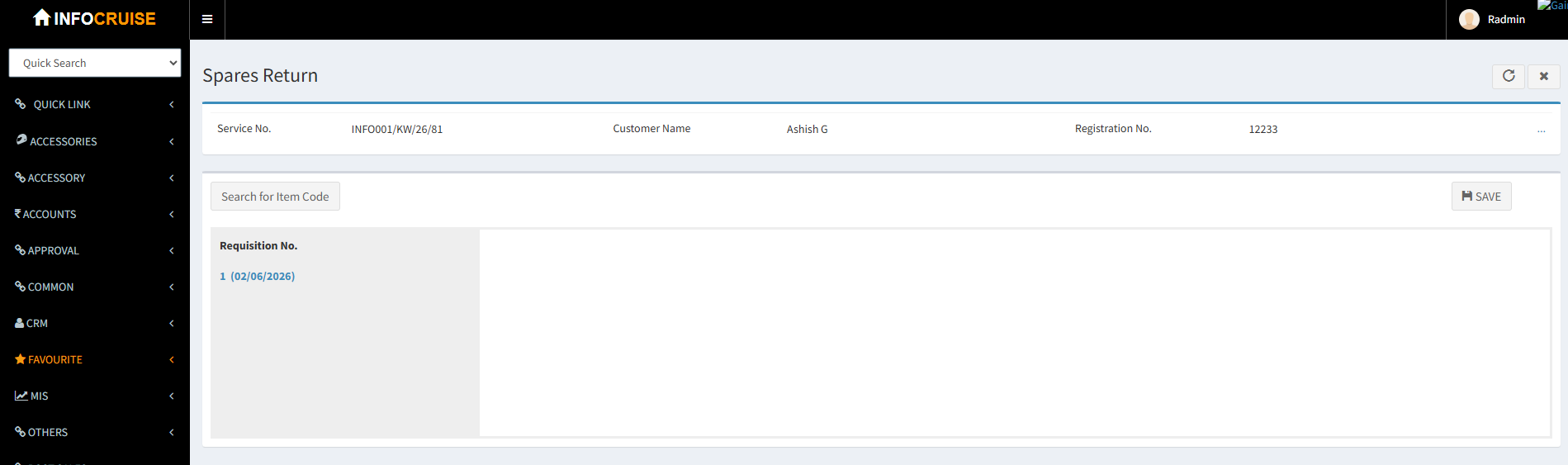

5. Spare Return Screen Overview

After clicking Item Return, the system opens the Spare Return Screen.

The screen displays:

• Requisition Number
• Requisition Date
• Issued Spare Parts
• Issued Quantity
• Return Quantity
• Spare Details


6. Understanding Requisition-Based Spare Issue

What is a Requisition?

A requisition is a spare issue transaction created during spare issuance.

Every time parts are issued to a job card:

• A requisition entry is created
• The issued parts are linked to that requisition
• The same requisition appears during spare return

Industry Standard Practice

Dealerships generally maintain:

• One requisition per technician
• One requisition per repair activity
• Separate requisitions for insurance/warranty jobs

This improves:

• Material traceability
• Technician accountability
• Inventory reconciliation

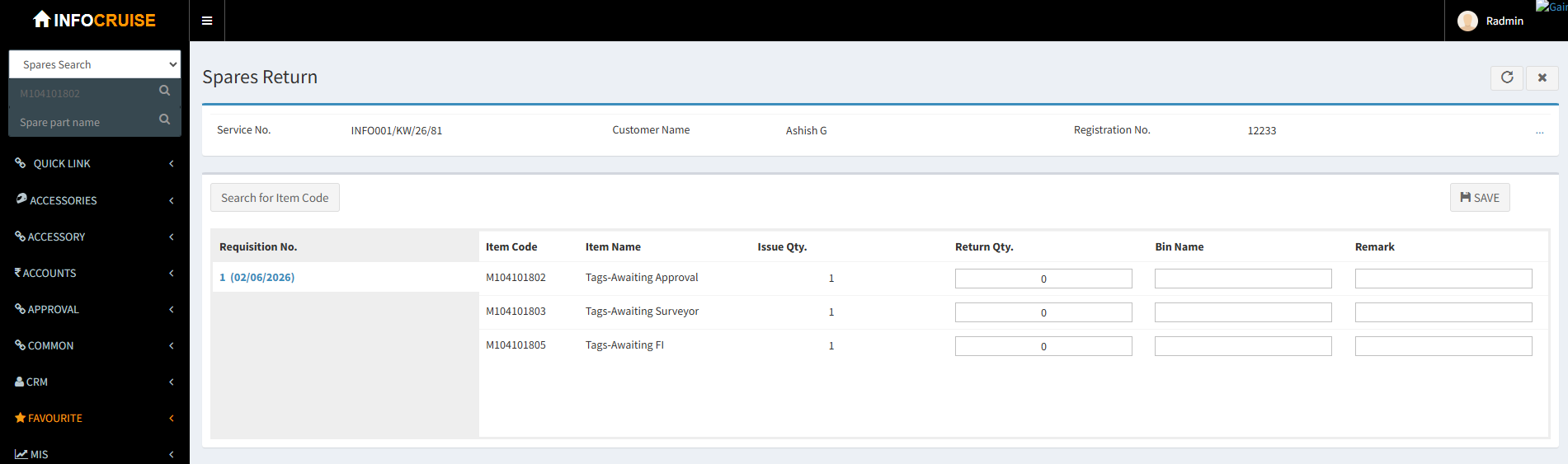

7. Selecting the Issued Spare

Step 3: Select the Requisition

Click the requisition number.

The system loads all spare parts issued under that requisition.

Example details shown:

8. Entering Return Quantity

Step 4: Update Return Quantity

By default:

• Return Quantity = 0

Enter the quantity to be returned.

Example

This means:

• The entire issued quantity is being returned
• The part will not be billed to the customer

• If Issue quantity is less than return quantity than the DMS system will not allows to perform the return activity.

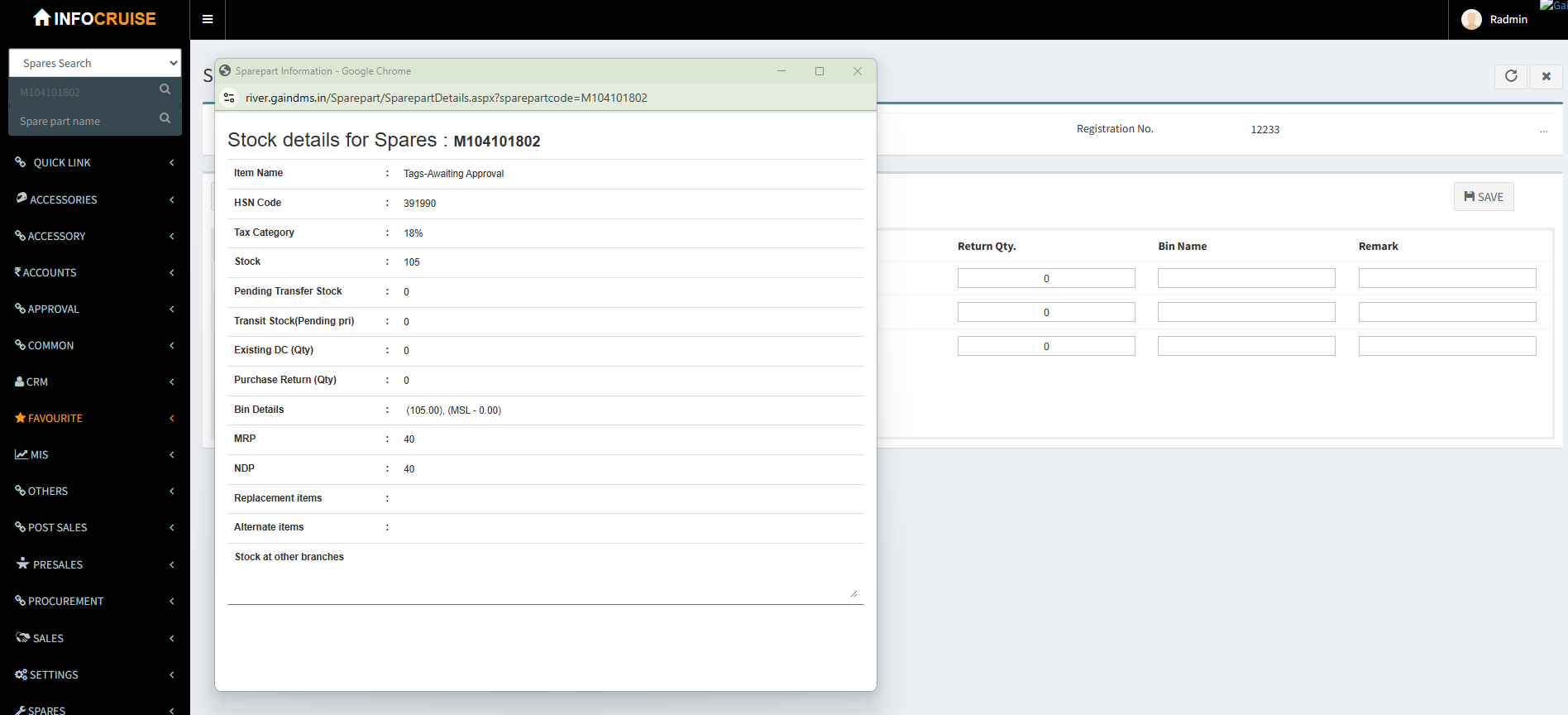

9. Validating Stock Before Return

Step 5: Verify Existing Inventory Stock

Before saving the return:

• Verify stock availability
• Confirm physical part condition
• Ensure part is unused and returnable

Example:

This confirms that inventory was updated successfully.

10. Saving the Spare Return

Step 6: Save the Return Transaction

Click:

Save

The system will:

• Update inventory stock
• Record return transaction
• Update job card issue details
• Exclude returned quantity from billing


11. Post Return Verification

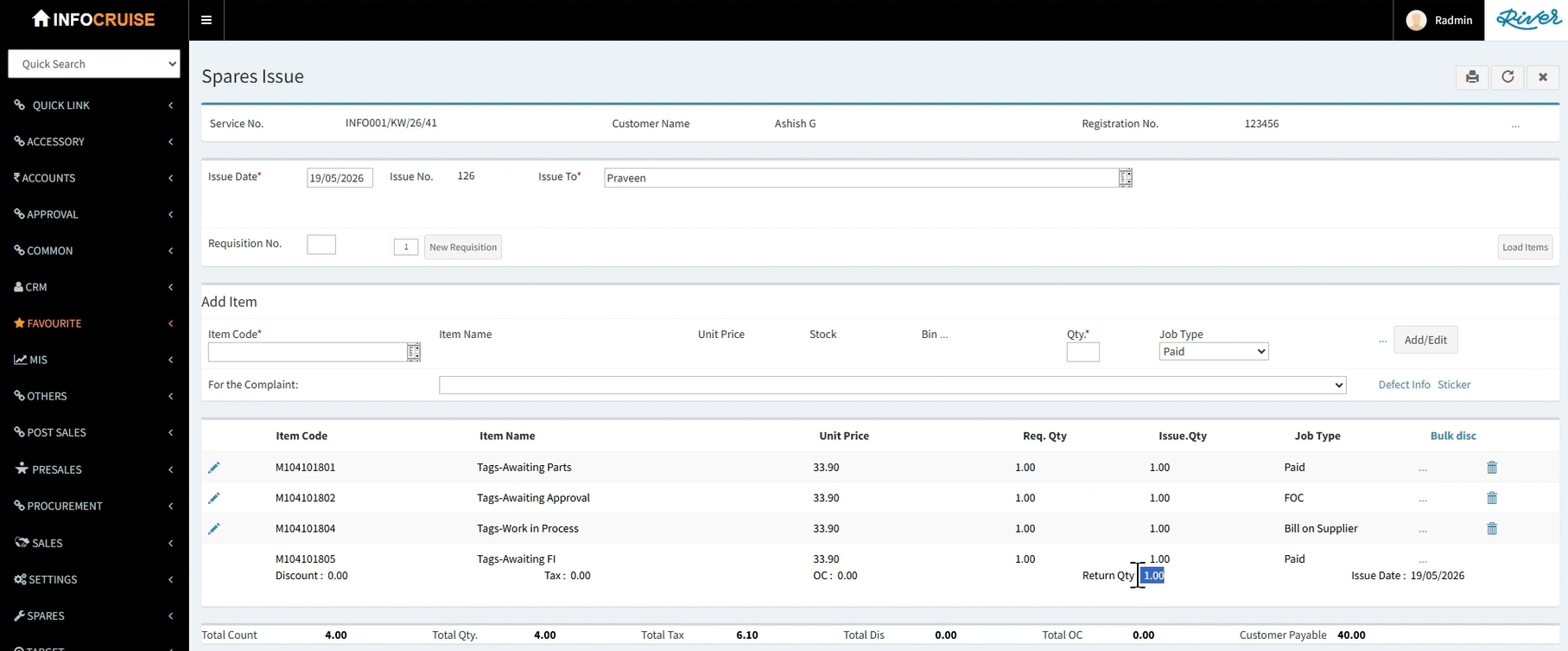

Step 7: Verify in Item Issue Screen

Navigate back to:

Action → Item Issue

The returned spare will still appear in the issue list for audit history.

Return Quantity Visibility

Click the Three Dots Menu beside the part.

The system shows:

For non-returned parts:

| Return Quantity | 0 |

12. Important System Behaviour

Returned Parts Are Still Visible

Even after return:

• The part remains visible in the issue screen
• The return quantity is updated
• Audit history is preserved

This is an important dealership control mechanism.

13. Impact on Billing

Fully Returned Part

If:

• Issue Quantity = Return Quantity

Then:

• The part will not appear in final billing


1. Issue Quantity > Return Quantity


1. The parts quantity which is mentioned in returned quantity will not appear in final billing only issued quantity after removing the return quantity will appear in final billing.

2. Eg. Issue Qty = 5 Qty  and Return Qty = 2 Qty than in Billing only 3 Qty will be Billed.


1. Issue Quantity < Return Quantity


1. System will not allow to perform this transaction.


Partially Returned Part

If:

Then:

• Only 3 quantities are billed


1. Warranty (Standard Warranty / Part Warranty)

2. Field Fix (Recall)

3. AMC (Service package)

4. Extended warranty


14. Industry Standard Best Practices

A. Always Validate Physical Part Before Return

Ensure:

• Part is unused
• Packaging is intact
• Part is not damaged

B. Return Parts Before Billing

Spare returns should ideally happen:

• Before job card closure
• Before invoice generation

This prevents billing corrections later.

C. Maintain Technician Accountability

The technician should confirm:

• Which part was unused
• Why it is being returned
• Quantity accuracy

D. Use Proper Return Authorization

Many dealerships require:

• Service Advisor approval
• Workshop Manager approval
• Spare Manager confirmation

Before high-value part returns.

E. Separate Warranty and Customer Parts

Returned parts from:

• Warranty jobs
• Insurance jobs
• Paid jobs

Should be tracked separately for audit compliance.

15. Common Real-Time Use Cases

16. Common Mistakes to Avoid

17. Operational Workflow Summary

Open Job Card
        ↓
Go to Item Return
        ↓
Select Requisition
        ↓
Choose Spare Part
        ↓
Enter Return Quantity
        ↓
Verify Stock
        ↓
Save Return
        ↓
Inventory Updated
        ↓
Billing Adjusted

18. Key Business Benefits

The spare return process helps dealerships achieve:

• Accurate inventory management
• Correct billing
• Better cost control
• Improved audit readiness
• Reduced stock discrepancies
• Higher operational transparency

19. Conclusion

The Service Job Spare Return functionality in DMS is a critical workshop inventory control process that ensures unused or incorrectly issued spare parts are properly returned to stock and excluded from billing.

When performed correctly, it improves:

• Inventory accuracy
• Financial control
• Customer billing accuracy
• Workshop accountability
• OEM audit compliance

A disciplined spare return process is considered an essential operational best practice in modern automotive dealership service management systems.
